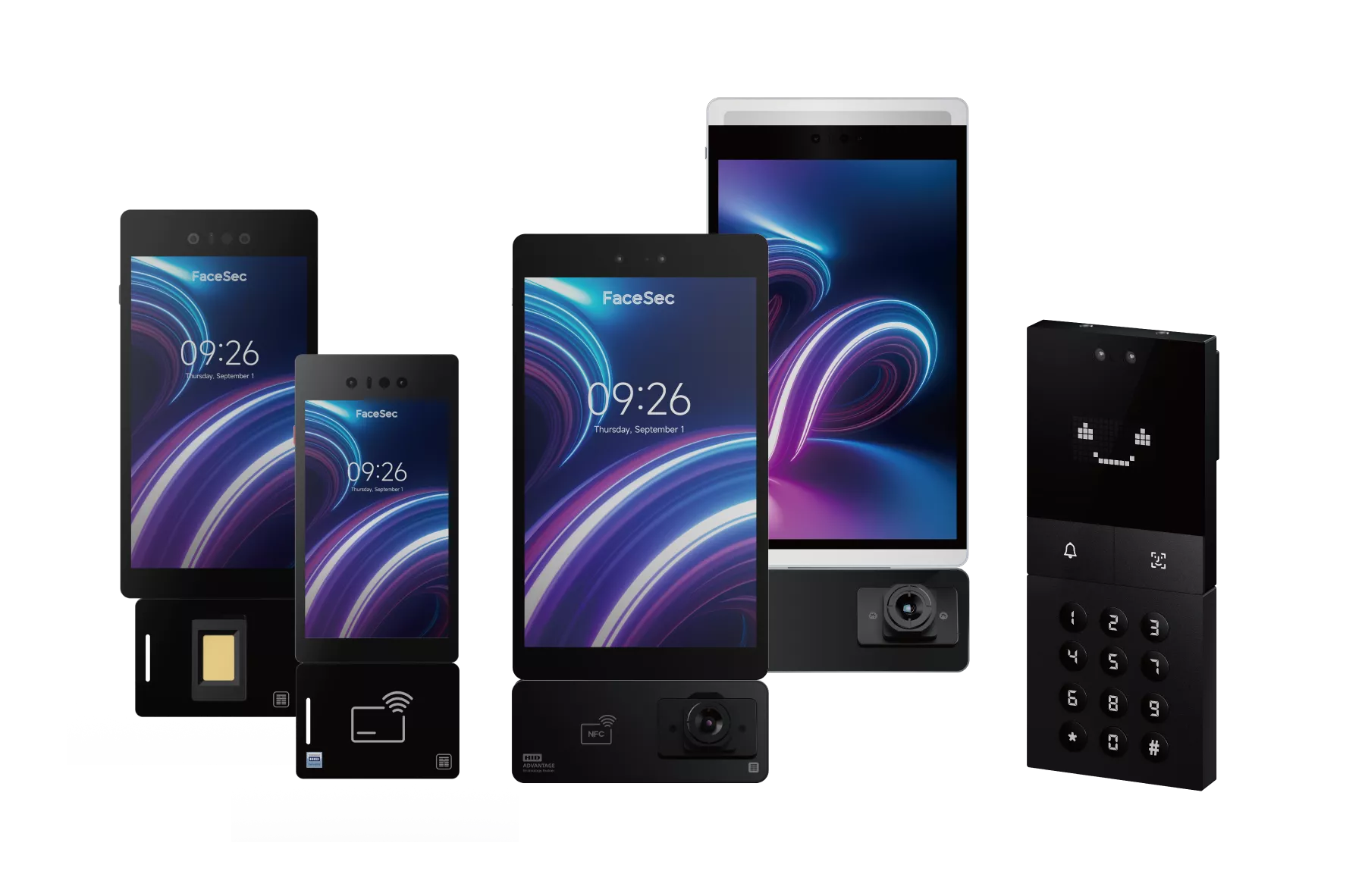

Flexible and convenient modular design, economical and safe.
Card Reader Module
Expands RFID radio frequency identification capability for FaceAccess devices, supporting 13.56MHz frequency band Mifare One S50, S70, Ultralight, Desfire, Pro, Plus, FM1208, AT88RF020, FeliCA, and more.
HID Card Reader Module
Features an integrated HID read/write module, dual frequency at 125KHz & 13.56MHz, supporting HID iCLASS, MIFARE, FeliCa, ISO 14443 A/B, ISO 15693, NFC, Apple Pay, and more.
Fingerprint Module
Utilizes a capacitive fingerprint sensor for sensitive and accurate collection, supporting 1:1 and 1:N recognition. Can be combined with other identification methods for enhanced security verification.
Temperature Measurement Module
Employs non-refrigerated infrared focal plane array imaging technology, unaffected by environmental conditions, with a high temperature measurement accuracy of up to ±0.2°C.
Numeric Keypad Module
Features a T9 physical button keypad with randomized number arrangement upon each activation, ensuring a higher level of security.

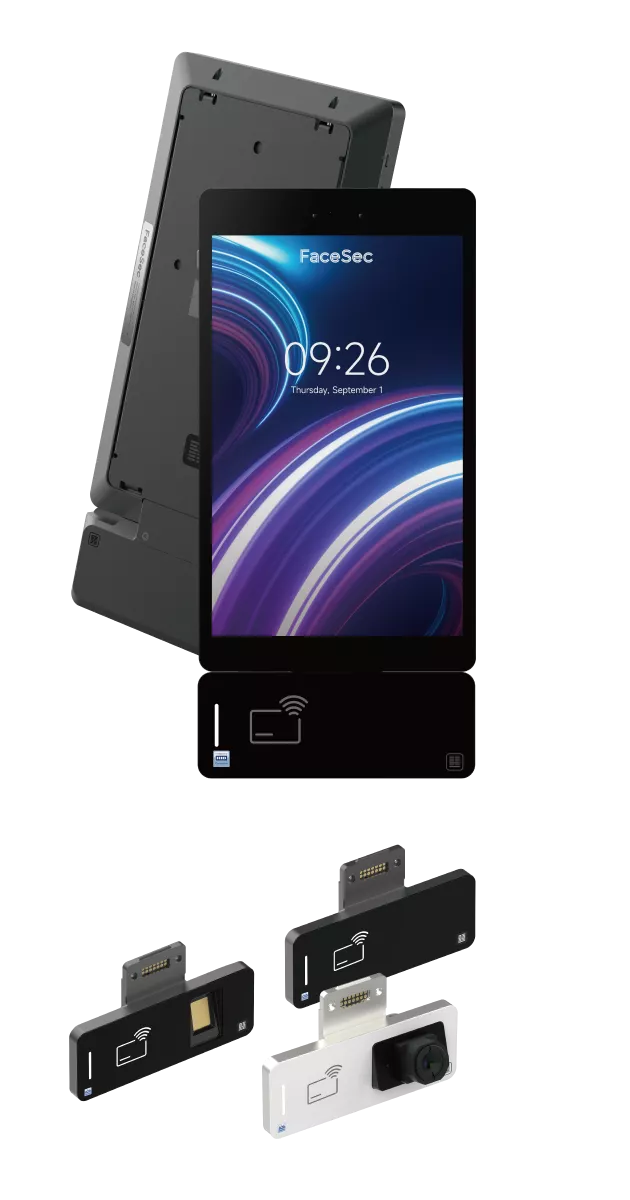

Photon 43
Photon 55
Universal Modular Design
Specifications

Model Name

FRD-SE2-TW

FRD-SE2-TB

FRD-SE2-FW

FRD-SE2-FB

FRD-SE2-CW/CB

FRD-SE2-HW/HB

Function

Card Reader

Module

Frequency Band

×

×

13.56MHz

125KHz & 13.56MHz

Supported Card Types

×

×

Mifare （One S50, S70, Utralight

Desfire, Pro, Plus）

FM1208, AT88RF020, FeliCa

iCLASS, iCLASS SE / SR, iCLASS Seos

MIFARE Classic, MIFARE DESFire 0.6, MIFARE DESFire EV1 / EV2

MIFARE Ultralight C, MIFARE Ultralight, FeliCa (Idm) CEPAS (CAN)

ISO 11443A/B, ISO15693, NFC TAG（1,2,3,4,5）

T=CL, SmartMx, Apple pay

HID Prox, Indala Prox, EM Prox

EM4100 / 4102 / 4200 / 4305 / 4450, AWID Prox, Hitag 1.2.3

ASK, PSK, FSK

Fingerprint

Module

Sensor Type

×

Capacitance

×

×

Verification Method

×

1:1, 1:N, 1:1 / 1:N

×

×

Fingerprint Database

×

5000

×

×

Sensor Size

×

18.2*12.8 mm

×

×

Image Size

×

256*360 PX

×

×

Image Resolution

×

508dpi

×

×

Temperature

Measurement

Module

Detector Type

Uncooled Infrared Focal

Plane Array

×

×

×

Pixel Pitch

25μm

×

×

×

IR Resolution

160 * 120

×

×

×

Frame Rate

15Hz

×

×

×

Range

30~45°C

×

×

×

Accuracy

±0.2°C

(Ambient Temp. 20~30°C)

×

×

×

Measuring Distance

≤1.2 m

×

×

×

Mechanical

Dimension (W*H*D)

65*65*39.1 mm

65*65*14.7 mm

Operating Temp.

-10°C ~ 40°C

Operating Humidity

5% ~ 95% non-condensing

Compatible Devices

Photon 43 / Photon 55

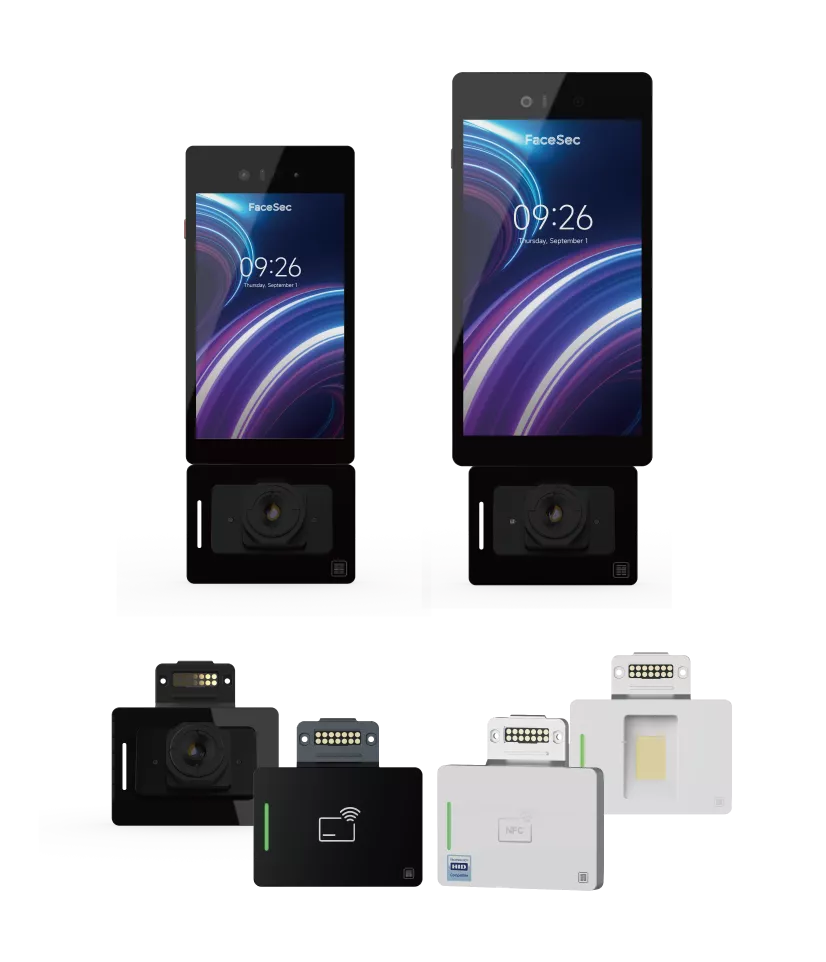

Photon 80
Dual-functional Modular Design
Specifications

Model Name

FRD-SE3-CTW/CTB

FRD-SE3-CFW/CFB

FRD-SE3-CW/CB

FRD-SE3-HTW/HTB

FRD-SE3-HFW/HFB

FRD-SE3-HW/HB

Function

Card Reader

Module

Frequency Band

13.56MHz

125KHz & 13.56MHz

Supported Card Types

Mifare （One S50, S70, Utralight

Desfire, Pro, Plus）

FM1208, AT88RF020, FeliCa

iCLASS, iCLASS SE / SR, iCLASS Seos

MIFARE Classic, MIFARE DESFire 0.6, MIFARE DESFire EV1 / EV2

MIFARE Ultralight C, MIFARE Ultralight, FeliCa (Idm) CEPAS (CAN)

ISO 11443A/B, ISO15693, NFC TAG（1,2,3,4,5）

T=CL, SmartMx, Apple pay

HID Prox, Indala Prox, EM Prox

EM4100 / 4102 / 4200 / 4305 / 4450, AWID Prox, Hitag 1.2.3

ASK, PSK, FSK

Fingerprint

Module

Sensor Type

×

Capacitance

×

×

Capacitance

×

Verification Method

×

1:1, 1:N, 1:1 / 1:N

×

×

1:1, 1:N, 1:1 / 1:N

×

Fingerprint Database

×

5000

×

×

5000

×

Sensor Size

×

18.2*12.8 mm

×

×

18.2*12.8 mm

×

Image Size

×

256*360 PX

×

×

256*360 PX

×

Image Resolution

×

508dpi

×

×

508dpi

×

Temperature

Measurement

Module

Detector Type

Uncooled Infrared Focal

Plane Array

×

×

Uncooled Infrared Focal

Plane Array

×

×

Pixel Pitch

25μm

×

×

25μm

×

×

IR Resolution

160 * 120

×

×

160 * 120

×

×

Frame Rate

15Hz

×

×

15Hz

×

×

Range

30~45°C

×

×

30~45°C

×

×

Accuracy

±0.2°C

(Ambient Temp. 20~30°C)

×

×

±0.2°C

(Ambient Temp. 20~30°C)

×

×

Measuring Distance

≤1.2 m

×

×

≤1.2 m

×

×

Mechanical

Dimension (W*H*D)

120*72*40 mm

120*72*15.5 mm

120*72*40 mm

120*72*15.5 mm

Operating Temp.

-10°C ~ 40°C

Operating Humidity

5% ~ 95% noncondensing

Compatible Devices

Photon 80

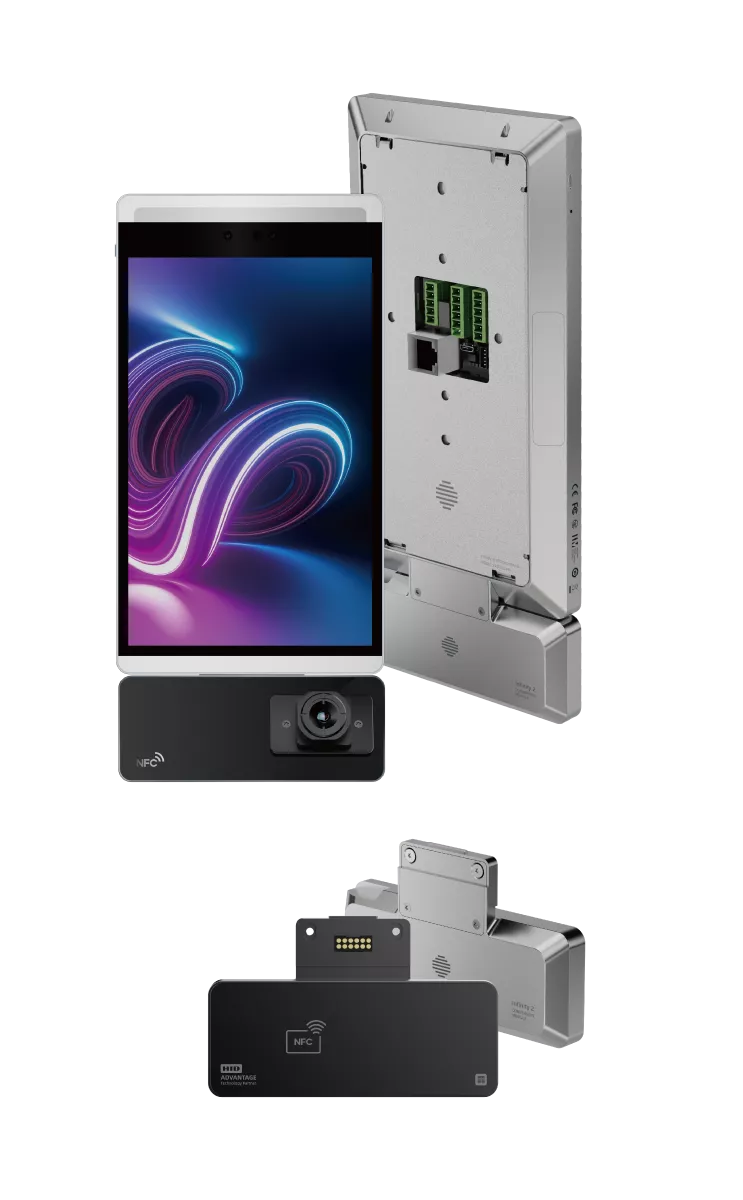

Infinity 2
Dual-functional Modular Design
Specifications

Model Name

FRD-SE-CTW/CTB

FRD-SE-CFW/CFB

FRD-SE-CW/CB

FRD-SE-HTW/HTB

FRD-SE-HFW/HFB

FRD-SE-HW/HB

Function

Card Reader

Module

Frequency Band

13.56MHz

125KHz & 13.56MHz

Supported Card Types

Mifare (One S50, S70, Utralight

Desfire, Pro, Plus

FM1208, AT88RF020, FeliCa)

iCLASS, iCLASS SE / SR, iCLASS Seos

MIFARE Classic, MIFARE DESFire 0.6, MIFARE DESFire EV1 / EV2

MIFARE Ultralight C, MIFARE Ultralight, FeliCa (Idm) CEPAS (CAN)

ISO 11443A/B, ISO15693, NFC TAG（1,2,3,4,5）

T=CL, SmartMx, Apple pay

HID Prox, Indala Prox, EM Prox

EM4100 / 4102 / 4200 / 4305 / 4450, AWID Prox, Hitag 1.2.3

ASK, PSK, FSK

Fingerprint

Module

Sensor Type

×

Capacitance

×

×

Capacitance

×

Verification Method

×

1:1, 1:N, 1:1 / 1:N

×

×

1:1, 1:N, 1:1 / 1:N

×

Fingerprint Database

×

5000

×

×

5000

×

Sensor Size

×

18.2*12.8 mm

×

×

18.2*12.8 mm

×

Image Size

×

256*360 PX

×

×

256*360 PX

×

Image Resolution

×

508dpi

×

×

508dpi

×

Temperature

Measurement

Module

Detector Type

Uncooled Infrared Focal

Plane Array

×

×

Uncooled Infrared Focal

Plane Array

×

×

Pixel Pitch

25μm

×

×

25μm

×

×

IR Resolution

160 * 120

×

×

160 * 120

×

×

Frame Rate

15Hz

×

×

15Hz

×

×

Range

30~45°C

×

×

30~45°C

×

×

Accuracy

±0.2°C

(Ambient Temp. 20~30°C)

×

×

±0.2°C

(Ambient Temp. 20~30°C)

×

×

Measuring Distance

≤1.2 m

×

×

≤1.2 m

×

×

Mechanical

Dimension (W*H*D)

119.6*55*50 mm

119.6*48*18 mm

119.6*55*50 mm

119.6*48*18 mm

Operating Temp.

-10°C ~ 40°C

Operating Humidity

5% ~ 95% non-condensing

Compatible Devices

Infinity 2


Light 128
Designed for use in demanding environments
Specifications

Model Name

FRD-L128F

FRD-L128C

FRD-L128H

FRD-L128K

Function

Card Reader

Module

Frequency Band

×

13.56MHz

125KHz & 13.56MHz

×

Supported Card Types

×

Mifare (One S50, S70, Utralight

Desfire, Pro, Plus)

FM1208, AT88RF020, FeliCa

iCLASS, iCLASS SE / SR, iCLASS Seos

MIFARE Classic, MIFARE DESFire 0.6, MIFARE DESFire EV1 / EV2

MIFARE Ultralight C, MIFARE Ultralight, FeliCa (Idm) CEPAS (CAN)

ISO 11443A/B, ISO15693, NFC TAG（1,2,3,4,5）

T=CL, SmartMx, Apple pay

HID Prox, Indala Prox, EM Prox

EM4100 / 4102 / 4200 / 4305 / 4450, AWID Prox, Hitag 1.2.3

ASK, PSK, FSK

×

Fingerprint

Module

Sensor Type

Capacitance

×

×

×

Verification Method

1:1, 1:N, 1:1 / 1:N

×

×

×

Fingerprint Database

5000

×

×

×

Sensor Size

18.2*12.8 mm

×

×

×

Image Size

256*360 PX

×

×

×

Image Resolution

508dpi

×

×

×

Numeric Keypad Module

Keyboard Type

×

×

×

T9

Random Numbers

×

×

×

○

LED Display

×

×

×

○

Mechanical

Dimension (W*H*D)

69*70*18 mm

Operating Temp.

-20°C ~ 49°C

Operating Humidity

5% ~ 95% non-condensing

Compatible Devices

Light 128
