Model Name | FRD-WS-HD | |
General | ||
CPU & GPU | Octa-core A53 at 1.8GHz / GPU Adreno 506 at 650MHz | |
RAM & Storage | 2GB+16GB / 3GB+32GB | |
SD Slot (32GB / FAT32) | × | |
Operating System | FaceOS (based on Android 8.1) | |
Database Version | greenDAO 3.3.0 | |
Browser Version Required | Chrome 1.7.1 / Edge 115.0 / Firefox 121.0 or higher | |
Camera | Dual wide-angle camera (RGB+NIR) | |
Display | 8-inch LCD / 800*1280 PX | |
Multi Touch | Supported | |
Speaker | 24bits, 48kHz, 1W@8Ω | |
Microphone | Built-in Microphone | |
Power Consumption | ≤12W @ 12V DC | |
Power Input | 12V DC / 3A | |
POE Power Supply | × | |
Certification | IMDA, CE, FCC, MIC, BSMI,RoHS | |
Communication | 10/100M Ethernet, Wi-Fi 2.4G / 5G, Bluetooth 4.2 | |
I/O Interfaces | Wiegand | Wiegand TX*1,Wiegand RX*1 80-bit |
Relay | Relay_NC*1, Relay_COM*1, Relay_NO*1 （Max. 30V DC/1A） | |
RS485 | RS485*1 ( Half duplex) | |
USB | USB console port*1 | |
RJ45 | RJ45*1 | |
Input I/O | I/O*1 | |
Ingress Protection | IP63 | |
Operating Temperature | -10°C ~ 40°C | |
Relative Humidity | 5% ~ 95% non-condensing | |
Functional Module | Fingerprint | ○ |
Card Reader | ○ | |
HID Card Reader | ○ | |
Temperature Measurement | ○ | |
keyboard | × | |
Facial Recognition | ||
Recognition Distance | 0.6 ~ 1.0 m (23.6" ~ 39.3") | |
Recognition Height | 1.4 ~ 1.9 m (55.1" ~ 74.8") | |
Matching Speed | Less than 0.3 sec | |
Liveness Detection (Anti-Spoofing) | ○ | |
Max. User | 100,000 | |
Max Credential(1:N) | 100,000 | |
Max. Credential(1:1) | 100,000 | |
Max. Text Log | 5,000,000 | |
Max. Image Log | Device storage: 100,000 ~ 500,000 records(depends on image quality) On-Cloud storage: 1 year guaranteed & then first in first out data coverge | |
Mechanical | ||
Dimension (W*H*D) | 119.6*214*25 mm | |
Enclosure | Aluminum alloy | |
Weight | 876 g | |

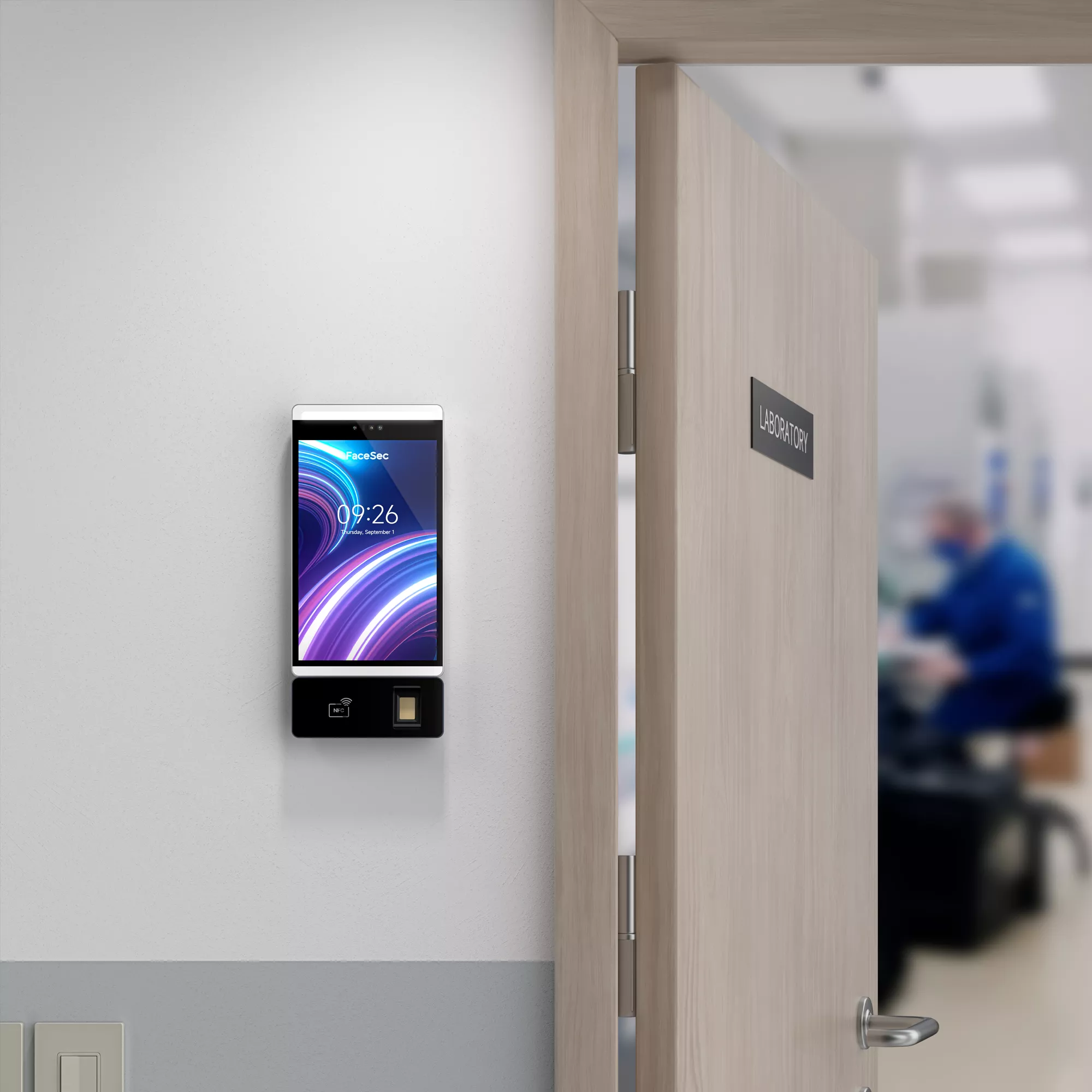

Mounting | Wall | ○ |
Desktop | ○ | |
Standing | ○ | |
